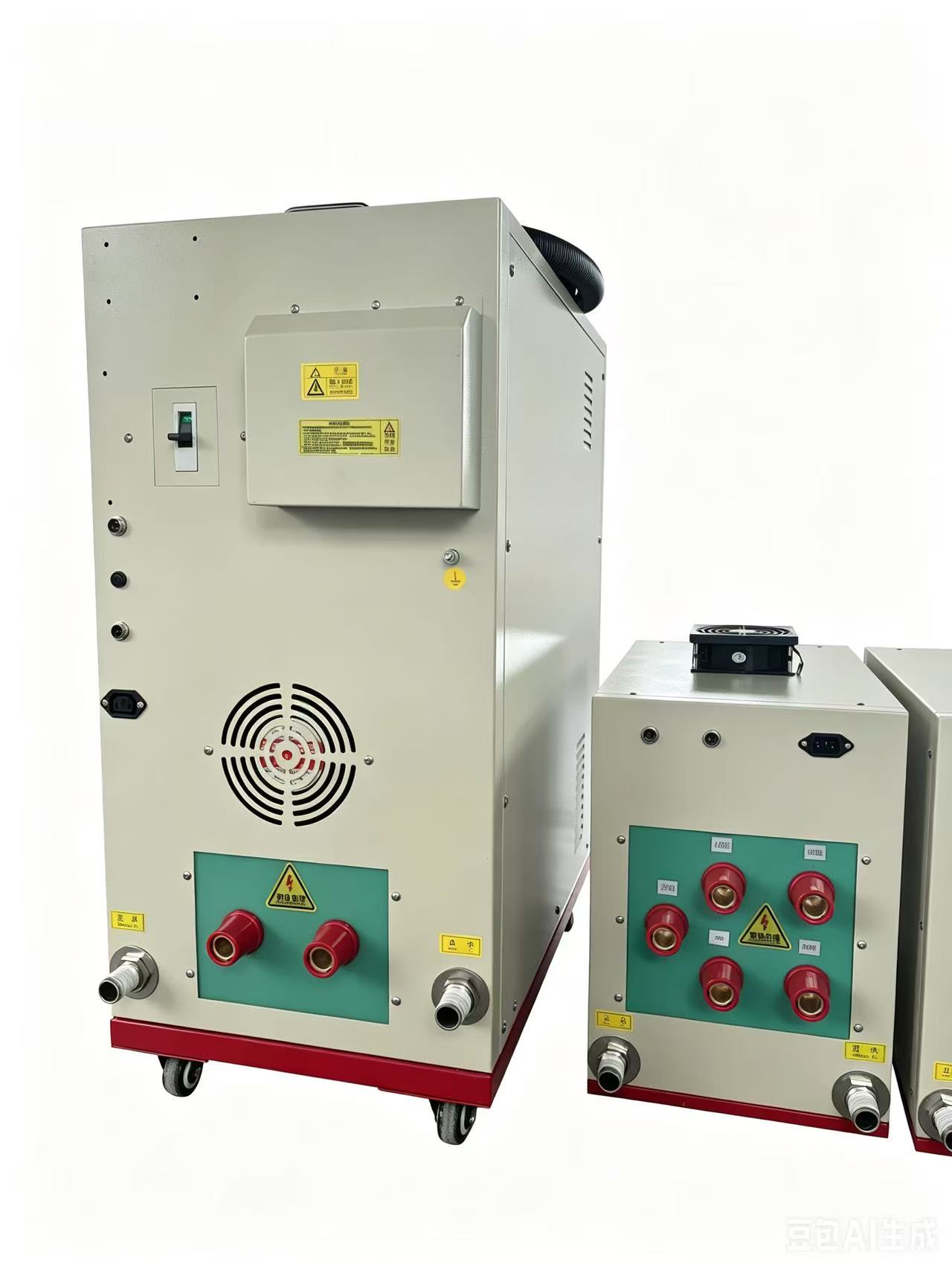

UHF-40kW Induction Heating Machine:
1. Input Voltage: 3*380V, 50/60HZ
2. Working Voltage: 340-430V
3. Output Power: 40kW
4. Output Frequency: 50-400kHZ
5. Output Current:10-60A
6. Size: 680*350*600 mm/500*300*480mm
7. Weight:50kg/27kg
Application:
* Brazing
* Forging
* Hardening Tempering
* Annealing Quenching
* Melting
Other induction heating machine model:
Features:

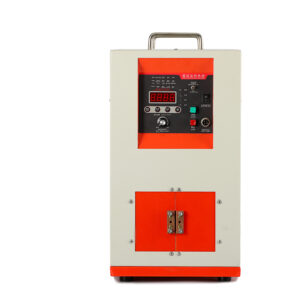

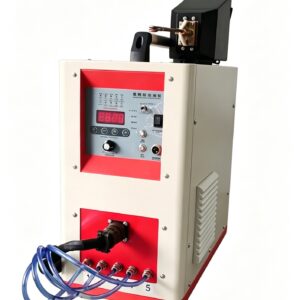

* Model: 3kW, 6kW,10kW,20kW,20kW-AB , 30kW-AB, 40kW-AB, 60kW-AB
* IGBT Type
* Frequency: 50-500kHZ
* 24 Hour continuous work
* Voltage & current full display. Adjust heating, Holding time
* Easy to operate and more stable
* Design different type induction coil
| Model | UHF-3kW | UHF-6kW | UHF-10kW | UHF-20kW | UHF-20kW-AB | UHF-30kW-AB | UHF-40kW-AB | UHF-60kW-AB |
| Input Voltage | 220V | 3 x 380V, 50/60HZ | ||||||
| Input Current | 3-12A | 5-20A | 3-20A | 3-35A | 3-35A | 10-45A | 10-60A | 12-100A |
| Output Power | 3kW | 6kW | 10kW | 20kW | 20kW | 30kW | 40kW | 60kW |
| Output Frequency | 200-500KHZ | 50~400KHZ | ||||||
| Working Voltage | 180-250V | 340-430V | ||||||
| Size (mm) | 285*287*146 | 632*260*550 | 630*260*550 | 630*260*550 | 600*260*530 | 630*280*535 | 680*350*600 | 750*400*880 |
| 400*250*380 | 500*260*450 | 500*300*480 | 500*300*480 | |||||
| Weight | 20kg | 23kg | 30kg | 30kg | 30kg/20kg | 35kg/24kg | 50kg/27kg | 50kg/27kg |
The System Include:
1. Induction Heating Power
2. Induction Transformer
3. Induction Coil
4. Water Cooling system (Chosen Part)
5. Manual and other part
